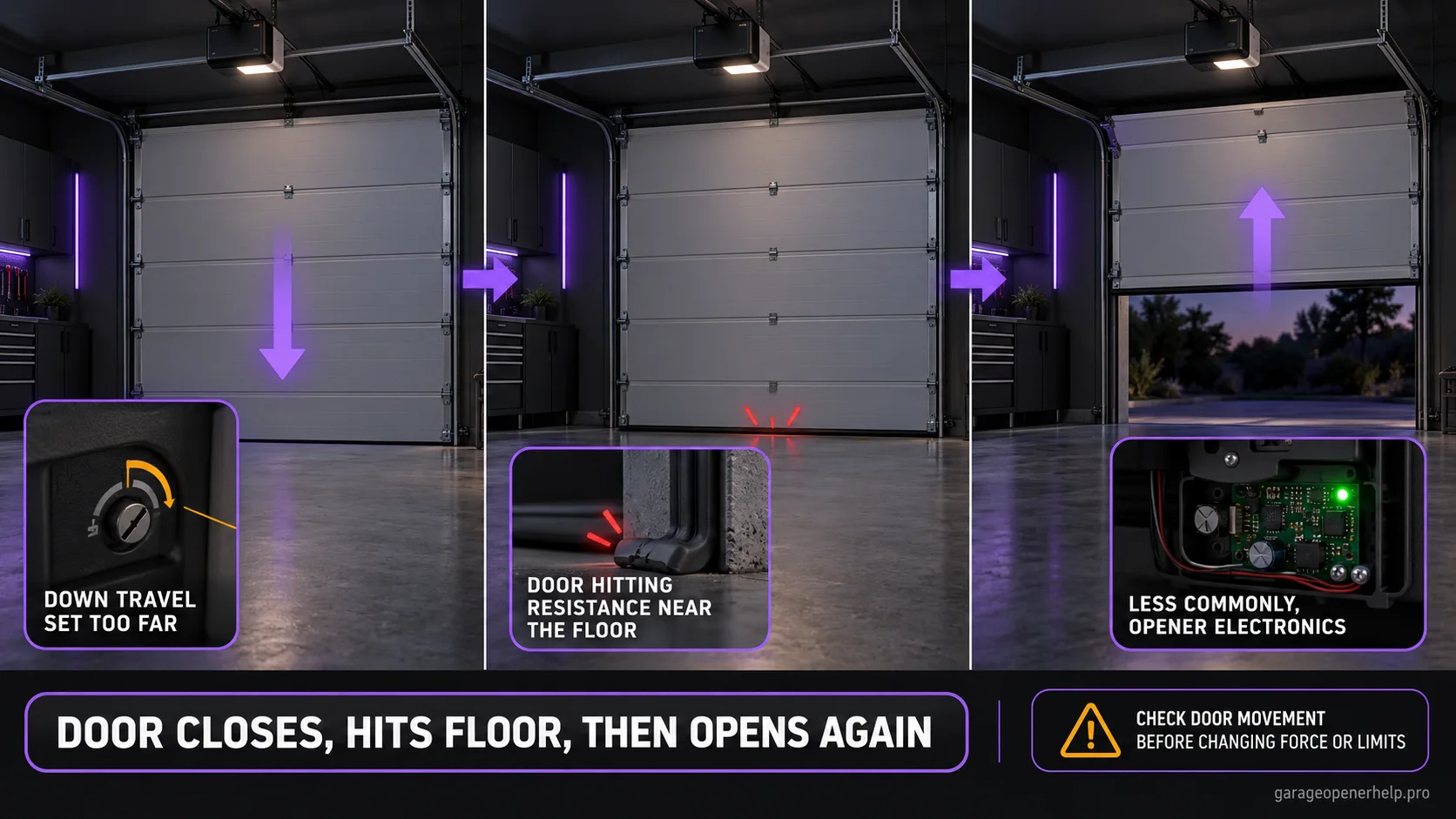

If the door reaches the floor and then reverses, down travel may be set too far, the door may be encountering resistance, or—less commonly—the opener electronics may be involved. Check door movement before changing settings.
Separate a reversal above the floor from one after floor contact
Does the bottom seal touch the floor before the opener reverses?
That observation changes the troubleshooting branch. A reversal above the floor keeps sensors, obstruction, resistance and model-specific force/travel behavior in play. Clear floor contact followed by reversal makes excessive DOWN travel a stronger clue on Chamberlain Group guidance, after mechanical resistance is ruled out.
What you are likely to notice
- Door reaches or nearly reaches the floor
- Door immediately reverses after contact
- The problem may appear after adjustments, service or seasonal movement
Check these in order
1. Watch the exact reversal point
A door that reverses before touching the floor is a different diagnostic branch than one that makes floor contact and then returns upward.
2. Check for mechanical resistance
Inspect the track and door path. If the door binds, solve the mechanical issue first instead of compensating with opener settings.
3. Review down-travel instructions for the exact model
Manufacturer procedures vary. If the door itself is healthy, use the model-specific travel/limit procedure rather than a generic number of turns or button presses.
4. Re-test the safety reversal system
After any travel adjustment, confirm the opener still reverses correctly when tested according to the manufacturer’s safety procedure.
The reversal point changes the diagnosis
A useful description is not simply “it reverses.” Note whether the door reverses several feet above the floor, around six to eight inches into travel, just before floor contact, or only after the bottom seal compresses against the floor. Those positions point toward different branches involving sensors, obstruction, mechanical resistance or down travel.
Chamberlain Group specifically identifies excessive down travel as a common reason a door reaches the floor and then reverses. That does not mean every reversing door needs a limit adjustment. If the door is binding or mechanically unhealthy, changing travel can make the symptom harder to interpret.
Seasonal changes can expose a marginal setting
Floor height, weather seals and door movement can vary enough that a setting which was barely acceptable begins producing a reversal. If the problem is seasonal, still verify that the door moves freely before adjusting anything. A healthy door plus a consistent reversal exactly at floor contact is a much stronger travel clue than a door that strains unpredictably in the middle of the opening.
After model-specific travel adjustment, perform the manufacturer’s safety-reversal test. The objective is not just to make the door stay closed; it must still reverse correctly when it should.
Separate floor contact from a reversal before the floor
The most useful observation is whether the door physically contacts the floor before it reverses. A door that reaches the floor and then reopens suggests a different travel/close-position branch than a door that reverses several inches above the floor because of a sensor or motor/RPM event. Record the exact reversal point and whether it is repeatable before changing limits.
Then look for a manufacturer diagnostic signal. Chamberlain/LiftMaster 4-1, for example, can involve an unexpected RPM/current change while traveling down and can include a down limit set too far among several possible causes. A confirmed 4-3 instead points toward loss of RPM during down travel and travel-module connections. The code should therefore decide which branch outranks a generic 'hits floor and reverses' checklist.
- Touches floor first: keep close-travel/limit evidence high in the branch.
- Reverses before floor: look for sensor or motor/RPM code evidence.
- Never increase force to overcome a heavy, binding or damaged door.
Record the reversal point in physical terms: before the floor, exactly at contact, or after the door compresses against the floor. Add any UP/DOWN diagnostic code and whether the same point repeats. Those observations tell the next diagnostic step whether to prioritize close-travel settings, a motor/RPM branch or a safety-system event instead of treating every reversal as the same failure.
Stop DIY troubleshooting when…
- The door is heavy or unbalanced
- Cables, rollers or springs are damaged
- Travel settings do not remain stored
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Why does my garage door touch the ground and reopen?
If it reaches the floor before reversing, down travel set too far is one common cause. A mechanical door problem is another, so check door movement before changing settings.
Should I increase the force?
Not as the first response. Increasing force can mask resistance. Confirm the door is mechanically sound and use the exact model’s travel procedure.
What if it reverses before reaching the floor?
That is a different symptom branch. Look for obstruction, sensor behavior and resistance at the point where reversal starts.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
