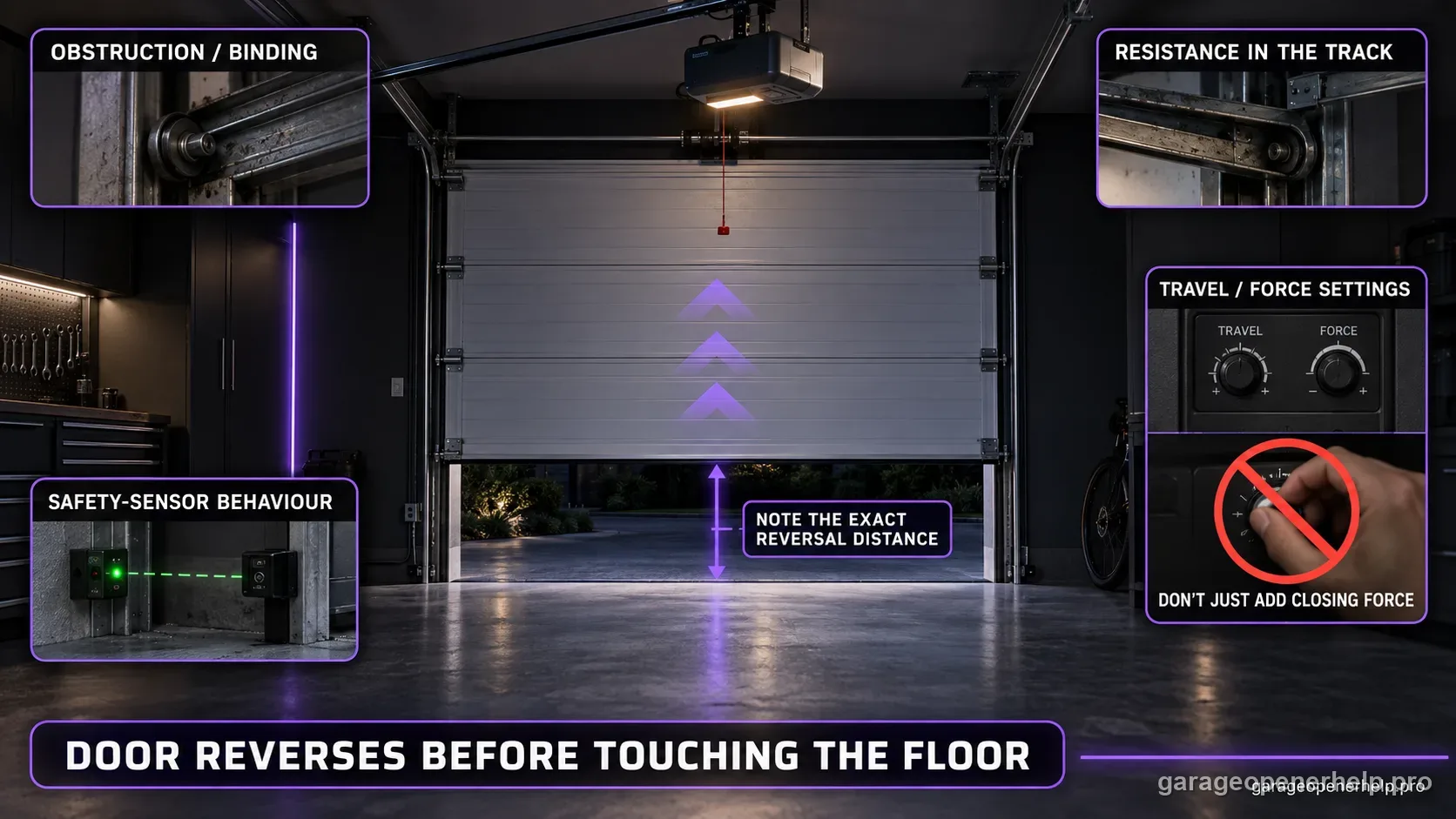

If the door reverses before reaching the floor, do not immediately add closing force. Chamberlain Group says resistance, obstruction, binding, safety-sensor behavior and travel/force settings can all matter. The exact distance traveled and any diagnostic code should determine the next branch.
Separate a reversal above the floor from one after floor contact
Does the bottom seal touch the floor before the opener reverses?
That observation changes the troubleshooting branch. A reversal above the floor keeps sensors, obstruction, resistance and model-specific force/travel behavior in play. Clear floor contact followed by reversal makes excessive DOWN travel a stronger clue on Chamberlain Group guidance, after mechanical resistance is ruled out.
What you are likely to notice
- The door moves down, stops above the floor and reverses open
- The reversal happens without the bottom seal clearly contacting the floor
- Affected Security+ 2.0 units may report a closing-force/obstruction diagnostic
Check these in order
1. Measure where the reversal happens
Estimate whether the door moves only a few inches or travels most of the way down before reversing. Chamberlain separates short-travel and longer-travel reversal paths because they do not point to exactly the same checks.
2. Check the safety-sensor state
If the opener reports the brand’s sensor flash pattern, or the receiving sensor is not steady, resolve that branch first. A sensor problem can prevent normal closing even when the door itself moves freely.
3. Look for resistance before changing settings
Inspect the door path and visible track for anything the door can contact or rub. If the door is heavy, crooked or binds manually, stop. Chamberlain specifically warns not to use force adjustments to compensate for a binding or sticking door.
4. Use model-specific travel/force guidance
Only after the door is mechanically sound and the sensor system is normal should you review DOWN travel or automatic-force learning for the exact opener generation. Any adjustment must be followed by the safety reversal test.
Do not confuse early reversal with floor-contact reversal
The first observation is simple but important: does the bottom seal actually touch the floor? If the door reverses while there is still visible space underneath, excessive DOWN travel is not the same first clue as it is when the door compresses into the floor. Early reversal keeps obstruction, binding, sensor and force-detection branches prominent.
Also record how far the door moves before reversing. Chamberlain separates doors that travel less than roughly 6–8 inches from those that travel farther. That distance can route you to a different troubleshooting path even when the user's description is simply 'it goes back up.'
Sensor and mechanical checks come before more force
A closing failure can be caused by an unstable safety-sensor circuit, so watch the LEDs and any opener-head flash pattern during the attempt. If the sensor state changes as the door moves, fix that branch first. If the sensors remain normal, look for door resistance and exact diagnostic codes.
Chamberlain explicitly warns against increasing force to compensate for a binding or sticking door. If the door is heavy, crooked or difficult to move manually, the opener settings should not be used as the repair.
When travel setup is appropriate
If the door is mechanically sound, the sensor system is stable and the opener has no unresolved fault, model-specific DOWN travel/force setup can be the correct next step. The procedure differs by opener generation, so use the model's manual or Chamberlain's matching support article.
After any travel or force adjustment, perform the safety reversal test. The goal is not merely to make the door reach the floor; it must also retain the protective reversal behavior specified by the manufacturer.
Use the amount of travel to choose the right branch
A reversal after only a few inches deserves a different first look from a door that travels almost to the floor. Chamberlain's support library explicitly separates less-than-6-to-8-inch behavior from longer-travel reversal. Short travel can implicate force sensing, RPM/drive behavior or immediate resistance; long travel keeps the final section of track, door geometry and travel settings in view.
You do not need a perfect tape measurement. Record whether it is 'a few inches,' 'midway,' or 'almost closed,' and whether the position is repeatable. That simple note is enough to choose a more accurate diagnostic branch and makes any later support call more useful.
What not to do after an early reversal
Do not repeatedly hold a remote, increase closing force until the door stays down, bypass the photo eyes, or keep cycling a door that is visibly binding. Those actions can defeat the evidence and, more importantly, interfere with safety systems designed to reverse when resistance is detected.
If a sensor fault is present, fix the sensor branch. If the door is mechanically abnormal, service the door. If both are healthy, then use the exact opener's travel/force procedure. Keeping those branches separate is safer and usually faster than changing settings first.
Stop DIY troubleshooting when…
- The safety sensors will not stay aligned
- The door is heavy, crooked or binding
- The opener repeatedly reports a force/obstruction fault
- A spring, cable or track component is damaged
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Why does my garage door reverse before it reaches the floor?
Possible branches include safety-sensor trouble, obstruction/binding, excessive closing-force detection, or incorrect travel/force setup. The reversal distance and any diagnostic code help narrow it down.
Is this the same problem as hitting the floor then reversing?
No. Chamberlain specifically lists excessive DOWN travel as a common cause when the door reaches the floor first. Reversing before contact keeps other resistance/sensor branches higher.
Should I increase the closing force?
Not before confirming the door is mechanically healthy. Chamberlain warns not to use force adjustments to compensate for a binding or sticking door.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
