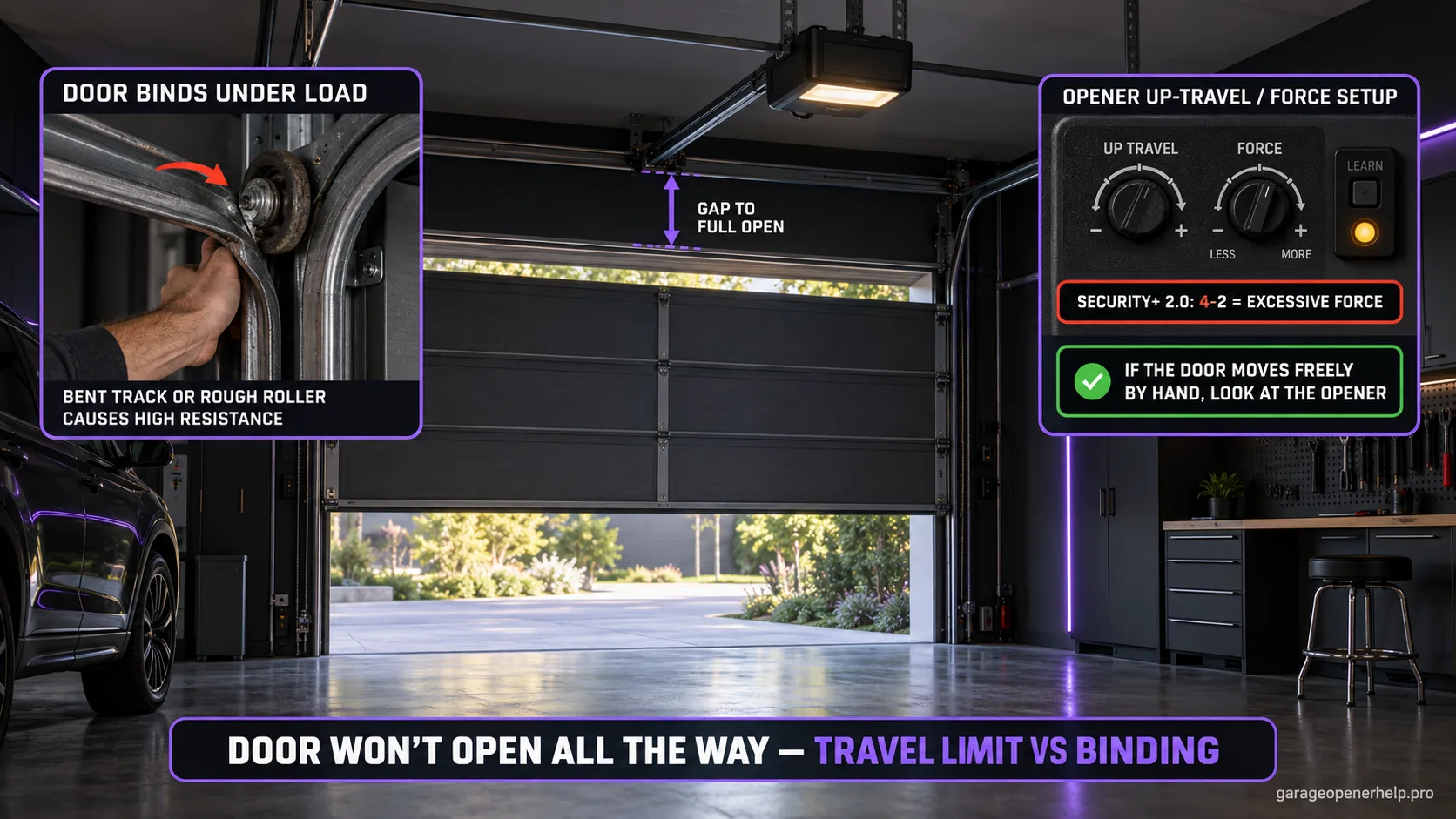

Chamberlain Group says a door that will not fully open should first be checked for balance, alignment, obstruction or binding. If the door itself moves freely, the next branch is the opener’s UP travel/force setup; on Security+ 2.0 units, 4-2 can indicate excessive opening force.
Separate door resistance from opener travel before adjusting settings
Does the door move freely by hand when it is safe to disconnect the opener?
A partial-opening symptom can come from the door system or from opener travel/force behavior. Chamberlain Group guidance checks obstruction and door movement before treating travel settings as the only explanation.
What you are likely to notice
- The door starts opening normally but stops below the full-open position
- The opener may report 4-2 or a 4-up / 2-down diagnostic pattern on compatible units
- The door may stop at a repeatable height even though the safety sensors look normal
Check these in order
1. Mark the exact stopping height
Run the opener once while keeping the doorway clear and note whether the stop happens at the same height every time. A repeatable full-height shortfall can fit a travel setting; a changing stop point is a stronger reason to look for binding, drag or an intermittent drive problem.
2. Check the door before changing force
With the door fully closed and stable, use the manufacturer’s safe manual-release procedure only if you can do so safely. A door that is unusually heavy, sticks, or will not move smoothly should be serviced as a door-system problem. Do not use more opener force to overpower mechanical resistance.
3. Read the opener diagnostics
On supported Security+ 2.0 units, 4-2 / four UP flashes followed by two DOWN flashes indicates obstruction, binding or a sticking door during opening. Record the code before resetting anything because it helps separate a force event from a simple learned stop point.
4. Review UP travel only after the door moves freely
If the door is mechanically healthy, use the exact opener’s travel procedure to confirm the desired full-open position. Different generations use screws, colored buttons, or UP/DOWN adjustment buttons, so do not copy a procedure from a different model family.
Use the stopping point as evidence
A door that always stops at nearly the same height gives you better evidence than a vague 'it won't open.' If it reaches roughly the same point on every cycle, compare that location with the learned UP limit and with any physical resistance in the tracks. If the stopping point moves around from cycle to cycle, a simple fixed travel limit becomes less convincing.
On supported Security+ 2.0 openers, Chamberlain Group ties a 4-2 / four-UP-two-DOWN diagnostic to obstruction, binding or a sticking door during opening. That makes the code useful, but it does not tell you which mechanical part is responsible. The door still has to be checked rather than treating the code as permission to raise force.
Why 'increase the force' is not the first instruction
Manufacturer guidance makes door balance part of the decision before settings are changed. An opener should move a properly operating door; it should not be used to mask a spring, roller, track or balance problem. A door that feels substantially heavier than normal or catches at a repeatable point belongs in the mechanical-service branch.
If the door itself is smooth and balanced, the opener's UP travel may simply be set short. That is when the exact model's travel procedure becomes useful. Older and newer Chamberlain/LiftMaster generations use different adjustment interfaces, so identifying the opener model first prevents the common mistake of following the wrong button sequence.
What success should look like after an adjustment
The final open position should provide the intended clearance without driving the trolley into a hard stop. After any travel/force adjustment, run the manufacturer's safety checks. A setting change that makes the door open fully but creates unsafe reversal behavior is not a successful repair.
If the opener still stops short after the door has been verified mechanically and the correct travel setup has been completed, record the model, diagnostic pattern and whether the trolley also stops early with the door disconnected. Those details are more useful to support or a technician than repeated resets.
Travel limit vs. opening force: what each setting actually changes
Travel tells the opener where the door should stop. Force tells the opener how much resistance is acceptable while moving between those learned positions. Those controls interact, but they are not interchangeable. A door that stops cleanly at the same too-low height with no resistance can fit a short UP travel setting; a door that strains, slows or throws a 4-2 event is telling you about resistance/force detection instead.
This distinction is why the best sequence is observation first, mechanical check second, diagnostics third, and settings last. Changing both controls at once destroys the evidence you just collected and can make it harder to know what actually fixed—or masked—the symptom.
What to record before calling support or a dealer
Write down the opener model, whether the door reaches at least roughly normal vehicle-clearance height, the exact stopping point, any beep/flash/code, and whether the door moves smoothly by hand. If the trolley has been tested safely with the door disconnected, note whether it traveled the full rail.
Those observations let a technician distinguish a door-load problem from travel programming or an opener-drive issue much faster than a generic report that the door 'won't open.' They also reduce the temptation to sell or replace parts before the symptom has been isolated.
Stop DIY troubleshooting when…
- The door feels heavy or will not stay balanced
- A spring, cable, roller or track looks damaged
- The opener repeatedly reports excessive opening force after basic obstruction checks
- The trolley or drive stops erratically even with the door disconnected
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Why does my garage door stop before it is fully open?
Common branches include a door that is binding or poorly balanced, an obstruction/force event, or an UP travel limit that is set too short. Chamberlain Group recommends checking the door first before changing force/travel settings.
What does LiftMaster/Chamberlain 4-2 mean when the door stops opening?
Chamberlain Group identifies 4-2 as excessive opening force detected. A compatible opener may stop before the full-open position when it detects obstruction, binding or a sticking door.
Can I just increase the opening force?
Not to compensate for a binding or sticking door. Verify the door moves properly first, then follow the exact opener's model-specific travel/force procedure.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
