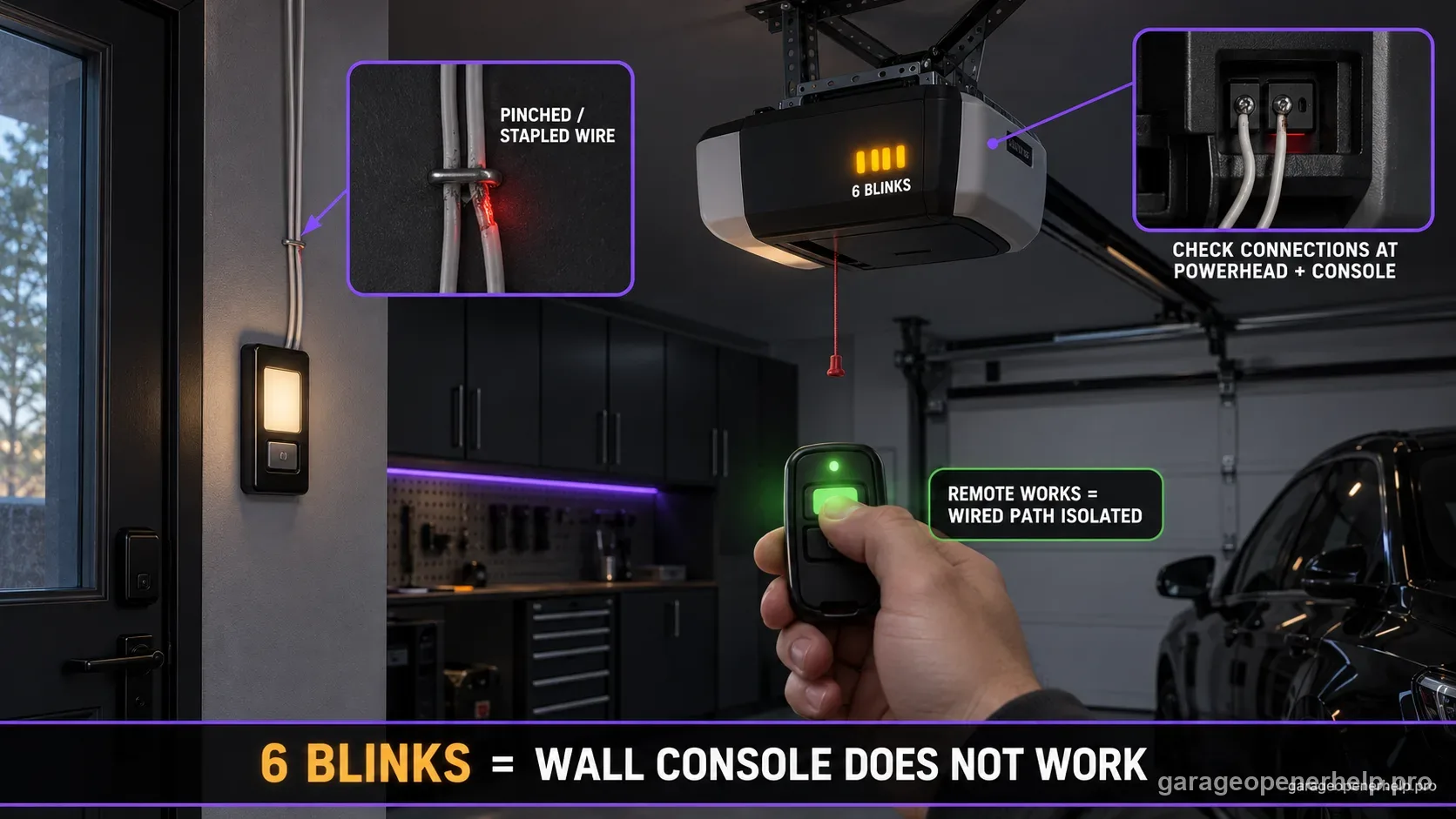

On Genie Excelerator openers, six repeating status-light blinks mean the wall console does not work. Genie directs you to check wall-console wiring for shorts, tight staples or pinched wire and to verify the connections at both the powerhead and wall console. A working remote can be useful evidence that the problem is isolated to the wired control path.
Diagnostic snapshot
- Answer
- Six repeating Excelerator status-light blinks mean the wall console does not work; Genie directs checks toward the low-voltage console wiring and connections.
- Check first
- Compare a known remote with the wall console, then inspect accessible wall-control wire for shorts, pinches, tight staples and loose terminals.
- Strong clue
- A remote that still works while the wired console does not makes a wall-control circuit fault more consistent than a total opener or receiver failure.
- Model / generation note
- Genie lists the Series II wall console for this Excelerator family; exact wiring should still be verified for the installed console.
This exact manufacturer signal can feed the following diagnostic family. Keep the original code or LED pattern when troubleshooting.
What you are likely to notice
- The Excelerator status light blinks six times, pauses, and repeats
- The wired wall console does not operate normally
- A handheld remote may still run the opener
- The Series II wall-console backlight or Sure-Lock/light features may also behave abnormally if wiring is wrong
Check these in order
1. Compare the wall console with a known remote
If a compatible programmed remote operates the opener while the wired wall console does not, the failure is more consistent with the wall-console circuit than with a total opener-power or receiver failure. If neither control works, broaden the diagnosis before assuming six blinks are the only issue.
2. Inspect visible low-voltage cable
Genie specifically calls out shorts, tight staples and pinched wires. Follow the visible wall-console cable and look for crushed insulation, staples driven too hard, exposed copper, loose terminals, or recent construction/storage changes that could have damaged the cable.
3. Verify terminal orientation using the exact Series II instructions
Genie's current Series II wall-console instructions use white wire between powerhead terminal #3 and console W, and striped wire between powerhead terminal #4 and console B on the documented setup. Reversed wiring can cause Sure-Lock and light features to malfunction. Photograph the existing connections before changing anything.
4. Do not replace the receiver or safety sensors first
A six-blink Excelerator code is a wall-console diagnosis. If accessible wiring and connections are correct but the code remains, preserve the model, console type and behavior for Genie support rather than clearing remote memory or replacing unrelated sensor parts.
Why comparing control paths is the fastest first test
A wired wall console and a handheld remote reach the opener through different control paths. If a known-compatible remote works while the wall console does not, the receiver, motor and much of the opener are demonstrating that they can still respond. That makes Genie's six-blink wall-console wiring branch more coherent.
If both controls are dead, record that too. A total no-response condition can indicate a broader problem and should not be squeezed into a wall-console-only diagnosis just because six blinks were seen earlier.
Series II wiring details explain strange lock/light behavior
Genie's Series II replacement instructions show white and striped conductors on specified terminals and warn that reversed connections can make Sure-Lock and light features malfunction. That means a console can appear partially alive while still being wired incorrectly.
A photo of the terminal arrangement before any change is valuable evidence. Tight staples, pinched cable and damaged insulation are also explicitly named by Genie and can create intermittent faults that disappear while the wire is being handled.
What not to replace first
Six Excelerator blinks do not tell you to replace safety sensors, clear remote memory, or install a new radio receiver. Start with the documented wall-console circuit. If accessible wiring and a verified compatible console still produce the same code, then support can move deeper without the evidence being obscured by unrelated parts changes.
If the wall-control cable runs through inaccessible finished walls and visible checks do not isolate the fault, stop before turning a low-voltage diagnostic into an unsafe or destructive wiring project.
Use the wall-console backlight as supporting evidence, not the entire diagnosis
On the Series II console, a red backlight is the documented normal state when the console is wired correctly and Sure-Lock is off. A dark backlight can therefore be useful, but it is not enough by itself because Sure-Lock intentionally turns the backlight off and incorrect wiring can also affect the light and lock functions.
Combine backlight state with the six-blink powerhead signal and a remote-versus-wall-console comparison. Multiple independent observations are stronger than replacing a wall console solely because its light looks different from what you remember.
Stop DIY troubleshooting when…
- The low-voltage cable disappears into a damaged wall and cannot be inspected safely
- There is burn damage at the powerhead or wall console
- The correct console/wiring generation is uncertain
- The six-blink pattern persists after accessible wiring and terminal checks
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
What do six blinks mean on a Genie Excelerator?
Genie defines six repeating status-light blinks as 'Wall Console Does Not Work.'
Can a remote still work when the wall console does not?
Yes. The remote uses a different control path, so that comparison is useful diagnostic evidence.
Does a dark Series II wall-console backlight always mean the console is bad?
No. Sure-Lock turns the backlight off, and Genie also warns that reversed wiring can affect backlight/lock/light functions.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
