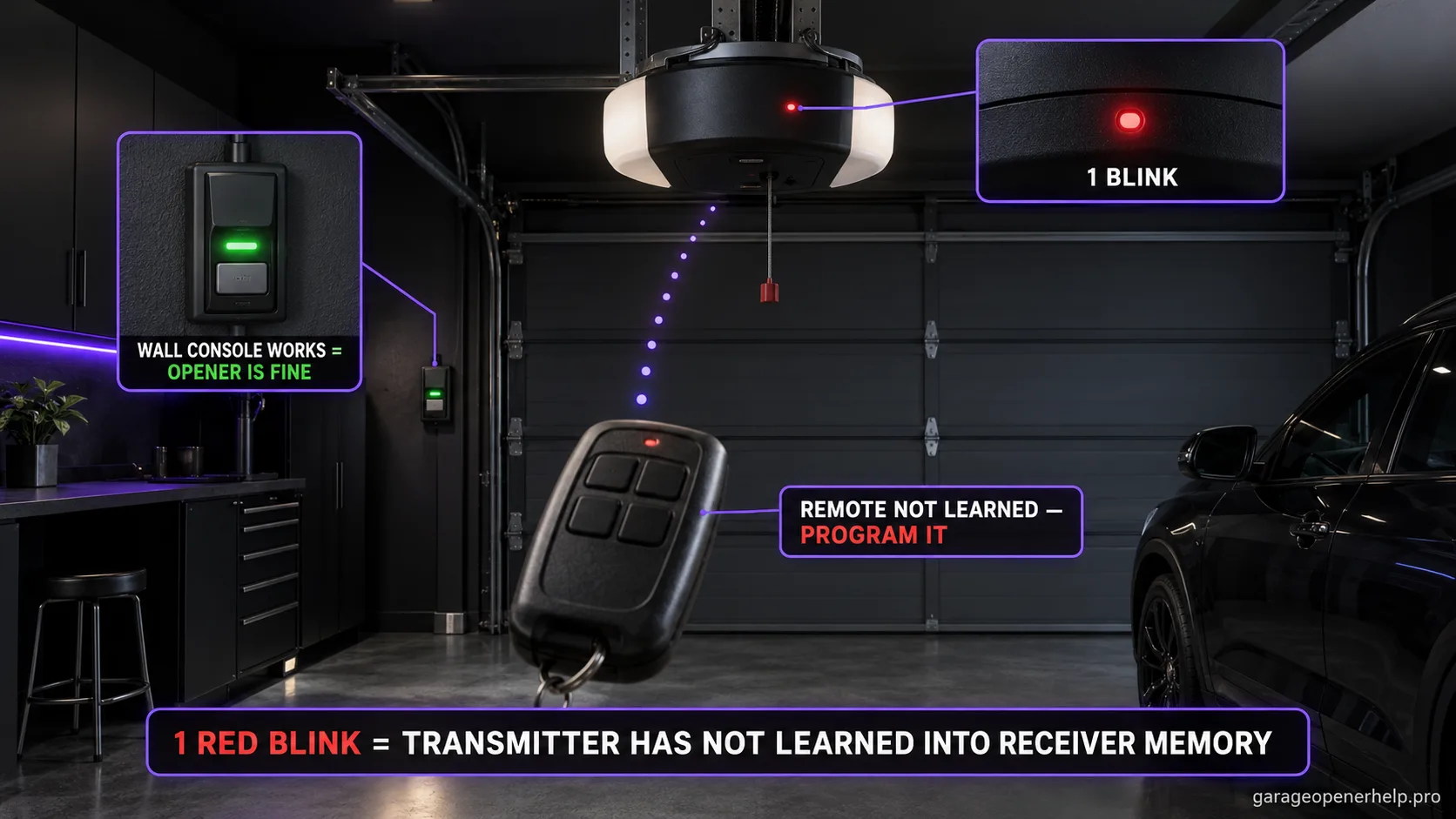

On Genie models 1022, 1024, 1042, 2022, 2024, 2042 and 2027, one RED powerhead LED blink followed by a pause means the transmitter has not learned. Genie directs owners to program the garage door opener remote. First confirm the wall console can operate the opener and identify the exact remote/opener generation before pairing.
Diagnostic snapshot
- Answer
- On the documented Genie 1022/1024/1042/2022/2024/2042/2027 family, one RED powerhead blink followed by a pause means the transmitter has not learned.
- Check first
- Verify the wall console still operates the opener, then identify the exact remote model and confirm it is compatible before programming.
- Strong clue
- A working wired wall control plus a failed/unlearned handheld remote keeps the diagnosis in the transmitter/receiver path rather than a total opener-power fault.
- Model / generation note
- Do not apply this powerhead code to Safe-T-Beam LEDs or unrelated Genie generations.
Do not mix Genie powerhead LED states with Safe-T-Beam LED states
Which LED is blinking: the opener powerhead or the floor-level Safe-T-Beam?
Genie documents powerhead LED diagnostics separately from the red/green Safe-T-Beam pair. Record LED color, solid/blinking state and blink count at the powerhead before choosing a branch.
This exact manufacturer signal can feed the following diagnostic family. Keep the original code or LED pattern when troubleshooting.
What you are likely to notice
- The powerhead red diagnostic LED blinks once, pauses, and repeats
- The wall control may operate the door while a handheld remote does not
- The remote may have been replaced, erased, or never paired
- The opener belongs to the documented 1022/1024/1042/2022/2024/2042/2027 family
Check these in order
1. Compare wall-control and remote operation
If the wired wall control runs the opener but the handheld transmitter does not, the control-path comparison supports the transmitter/receiver branch. If the wall control also fails, diagnose power or wall-control wiring instead of assuming a remote-learning problem.
2. Verify the remote is appropriate for the opener
Before programming, read the remote model and identify the opener generation. A transmitter that cannot be manufacturer-verified for the receiver should not be forced through random button sequences. Compatibility and programming are separate questions.
3. Program one remote using the exact Genie procedure
Genie's diagnostic chart says the remedy for one red blink is to program the garage door opener remote. Use the procedure in the exact opener/remote instructions and test one known transmitter before clearing other devices from memory.
4. Separate a failed learn attempt from radio-range trouble
If the remote pairs but works only at very short range, move to battery/interference/antenna diagnosis. If it never learns and the same one-blink pattern returns, preserve the model numbers and receiver state rather than buying a logic board from the blink pattern alone.
Use control-path comparison before reprogramming
A working wall console with a failed handheld remote is much stronger evidence for the transmitter/receiver path than a generic 'opener doesn't work' complaint. The one-red-blink diagnostic reinforces that branch on the covered models.
If the wall console also fails, step back. Power, wall-control wiring, travel, or a broader opener fault may be more relevant than remote learning.
Compatibility comes before button sequences
Programming a transmitter only makes sense after the remote is verified for the opener/receiver family. Older Genie systems can use different radio technologies and programming methods. Record both model labels before starting.
Use one known-compatible transmitter as the test device. If that device learns correctly, the receiver is at least responding to programming and the original remote can be evaluated separately.
When the symptom changes after pairing
If the remote learns but range is poor, move to battery, antenna and interference checks. Genie separately documents short remote range as a different problem with different causes.
If the opener refuses to learn a verified compatible remote and the same powerhead pattern remains, preserve that evidence for receiver/control diagnosis instead of clearing every programmed device repeatedly.
Do not erase all receiver memory as a diagnostic shortcut
Erasing every remote can turn one unlearned transmitter into several unlearned transmitters and removes useful evidence about whether the receiver already works with other devices. Start with one known-compatible remote and preserve any working controls unless the exact Genie procedure specifically requires memory clearing.
If another previously programmed remote still works, that is strong evidence that the receiver can hear at least one transmitter. The problem then narrows toward the new remote, its compatibility, battery, or the specific learning sequence rather than a total receiver failure.
Before contacting support, record whether the remote LED itself responds, whether another transmitter still operates the opener, and whether the one-red-blink powerhead pattern appears immediately after a failed learn attempt. Those three observations help distinguish a transmitter problem from a receiver that is no longer accepting programming.
Stop DIY troubleshooting when…
- The remote/opener compatibility cannot be verified
- All control paths fail, not just the remote
- The receiver will not learn a known-compatible transmitter after the exact procedure
- Internal receiver/control-board diagnosis is required
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Does one red blink mean the remote battery is dead?
The documented powerhead meaning is that the transmitter has not learned. Battery condition can still prevent successful use, but it is not the definition of this blink code.
Can I program any Genie remote to these openers?
No. Verify the remote and opener/receiver technology first, then use the matching manufacturer procedure.
What if the wall control also does not work?
That broadens the fault beyond a remote-only learning issue. Check opener power, wall-control wiring and other diagnostic signals before focusing on the transmitter.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
