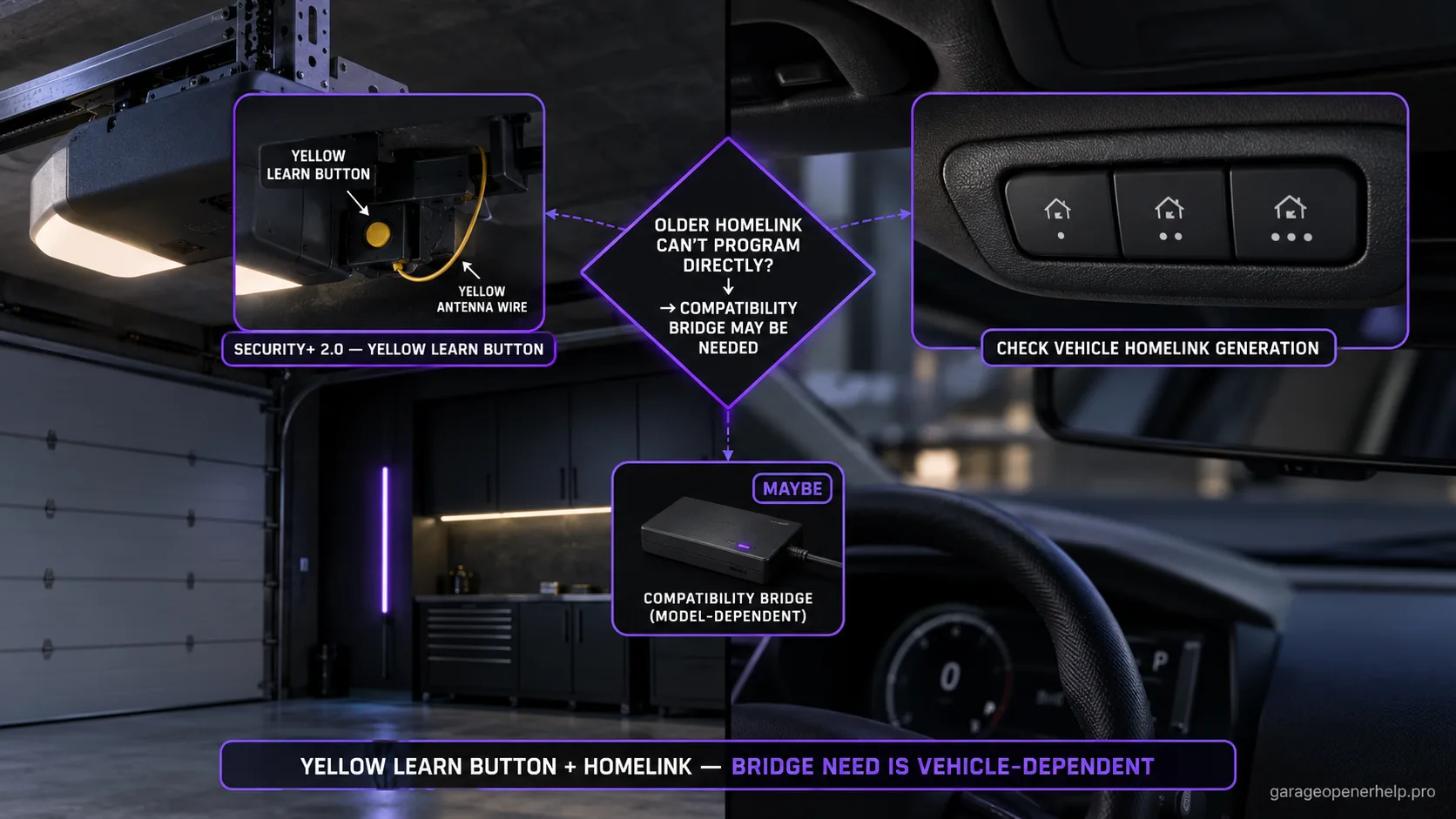

A yellow Learn button identifies the Chamberlain/LiftMaster/Craftsman Security+ 2.0 generation, but it does not by itself prove that you need a HomeLink Compatibility Bridge. Chamberlain says the bridge may be needed when an older HomeLink variant cannot program directly to a post-2011 Security+ 2.0 opener with a yellow Learn button/antenna. Verify the vehicle/HomeLink generation first.
Diagnostic snapshot
- Answer
- A yellow Learn button identifies Security+ 2.0, but it does not prove a HomeLink Compatibility Bridge is required; Chamberlain says the bridge may be needed for certain older HomeLink vehicle systems.
- Check first
- Identify the exact vehicle/HomeLink generation before ordering 855LM/HOMELINK RPTR hardware.
- Strong clue
- A documented older HomeLink variant that repeatedly fails the vehicle-specific direct-pairing procedure makes the bridge branch much stronger than Learn-button color alone.
- Model / generation note
- The Chamberlain bridge is for various post-2011 Security+ 2.0 yellow-button/antenna openers; Car2U is a separate system.
What you are likely to notice
- Vehicle HomeLink will not complete programming to a yellow-Learn-button opener
- The opener is a Chamberlain-family Security+ 2.0 unit made after 2011
- A seller or forum recommends an 855LM/HOMELINK bridge based only on Learn-button color
Check these in order
1. Confirm the yellow Learn button is on the motor unit
Do not identify the radio generation from a remote shell or a wall control. Chamberlain's bridge guidance is specifically for Security+ 2.0 openers with a yellow Learn button and yellow antenna. If an external receiver has been added, document that before using the motor-unit color as the whole compatibility answer.
2. Identify the HomeLink generation or exact vehicle
HomeLink describes the bridge as a solution for an older variant of the in-vehicle HomeLink system. Chamberlain says the bridge may be needed when a vehicle cannot program directly. That wording matters: yellow does not equal automatic bridge purchase.
3. Try the manufacturer/vehicle programming path before buying
Use HomeLink's vehicle-specific training and the opener's learn-button sequence. If the exact vehicle guidance calls for a bridge, or direct programming repeatedly fails in the documented way, then the bridge becomes a source-backed next step.
4. Do not substitute a Car2U bridge
Chamberlain separately documents the discontinued Car2U bridge for vehicles equipped with Car2U. It is not the HomeLink bridge. Identify the vehicle system before ordering any signal converter.
Why yellow identifies the opener generation but not the vehicle generation
The yellow Learn button is strong evidence that the opener is in the Security+ 2.0 family, but HomeLink compatibility is a two-sided problem: the opener has a radio generation and the vehicle has a HomeLink generation. Chamberlain's own bridge wording is conditional because some vehicles can pair directly while older HomeLink variants may need signal conversion.
Treat the result as 'bridge may be needed' rather than 'buy the bridge.' If the exact vehicle and HomeLink generation are unknown, the answer is still incomplete even when the opener side is identified perfectly.
What to save before troubleshooting programming
Write down the opener model, Learn-button color, approximate manufacture year, vehicle year/model, and whether HomeLink has ever controlled this opener. If direct pairing worked previously and suddenly stopped, a bridge purchase is a much weaker first conclusion than lost programming, vehicle memory reset, opener memory changes, or an unrelated opener radio problem.
If the system has never paired, use HomeLink's exact vehicle instructions first. Only after the documented path fails in the expected way should the compatibility-bridge branch become a purchasing decision.
A failed first attempt does not prove incompatibility
HomeLink training has both a vehicle-side learning step and, on rolling-code systems, an opener-side Learn-button step. A missed timing window, an uncleared vehicle button, a weak handheld-remote battery, or using the wrong vehicle procedure can all look like a compatibility problem. Repeat only the documented sequence rather than improvising several different reset methods.
If the vehicle has successfully learned the handheld remote signal but the opener never accepts the rolling-code step, record exactly where the procedure stops. That evidence is far more useful than the vague statement that HomeLink cannot see the garage door opener.
When the bridge path is justified
The bridge becomes a stronger conclusion when three facts line up: the opener is a documented yellow-button Security+ 2.0 unit, the vehicle uses an older HomeLink variant, and the direct vehicle-specific programming path is documented as needing the compatibility bridge or consistently fails in the bridge-related scenario. Treat those three pieces as a chain of evidence, not interchangeable clues.
This approach also prevents unnecessary accessory purchases when the real problem is lost opener memory, a non-HomeLink vehicle system, or an opener receiver fault that would remain even after a bridge is installed.
Stop DIY troubleshooting when…
- The opener model or Learn-button generation is still uncertain
- The vehicle does not actually use HomeLink
- The opener lacks required safety features or has a door-system safety problem
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Does every yellow Learn button need a HomeLink bridge?
No. Chamberlain says the bridge may be needed for certain vehicles/older HomeLink variants; yellow alone is not enough to prove the bridge is required.
Is 855LM the same as the HomeLink Compatibility Bridge?
855LM is one of the identifiers associated with Chamberlain's HomeLink Compatibility Bridge kit.
Can I use the Car2U repeater instead?
No. Chamberlain documents Car2U as a separate vehicle system with a different bridge product; it is not the HomeLink bridge.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
