On Genie Excelerator models H8000, H8000-07, H8000D, ISD990, ISD995, ISD1000, PRO99-family and CMD9900, four repeating status-light blinks mean the force settings are incorrect. Genie specifically says to check both the force settings and the condition of the garage door. Do not simply increase force to make a heavy or binding door move.
Diagnostic snapshot
- Answer
- Four repeating status-light blinks on the documented Genie Excelerator family mean the force settings are incorrect; Genie also tells owners to check the garage door condition.
- Check first
- Confirm the Excelerator powerhead indicator, then check safe door movement before changing force.
- Strong clue
- A heavy, binding or crooked door makes a mechanical door problem more consistent than a settings-only explanation.
- Model / generation note
- This is the legacy Excelerator screw-drive blink chart, not the 1022/2022-family green LED chart.
This exact manufacturer signal can feed the following diagnostic family. Keep the original code or LED pattern when troubleshooting.
What you are likely to notice
- The Excelerator status light blinks four times, pauses, then repeats
- The door may stop or reverse during travel
- The opener belongs to the documented Excelerator screw-drive family
- The symptom may appear after adjustment, service, or a change in door condition
Check these in order
1. Confirm this is the Excelerator powerhead status light
Genie uses different diagnostic systems on different opener families. This four-blink meaning applies to the Excelerator status light under the lens cover, not a Safe-T-Beam sensor LED and not the green powerhead chart used by 1022/2022-family openers.
2. Check the door condition before changing force
Genie's own four-blink instruction says to check the garage door condition. With the door fully closed and stable, use the exact owner's-manual procedure for a safe manual-movement check. A door that is unusually heavy, binds, is crooked, or will not stay controlled is a door-system problem—not a reason to turn force up.
3. Compare the current force setting with the exact manual
Excelerator force settings are not pre-set at the factory, so a prior adjustment can matter. Use the model manual and make only the prescribed adjustment. Do not use force as a workaround for damaged springs, rollers, track hardware, or a bad balance condition.
4. Re-test with one supervised cycle
After the door condition and documented setting are verified, run one supervised cycle and re-read the status light. If four blinks return, preserve the exact model, setting position, failure direction and any manual-door observations for Genie support or a qualified door technician.

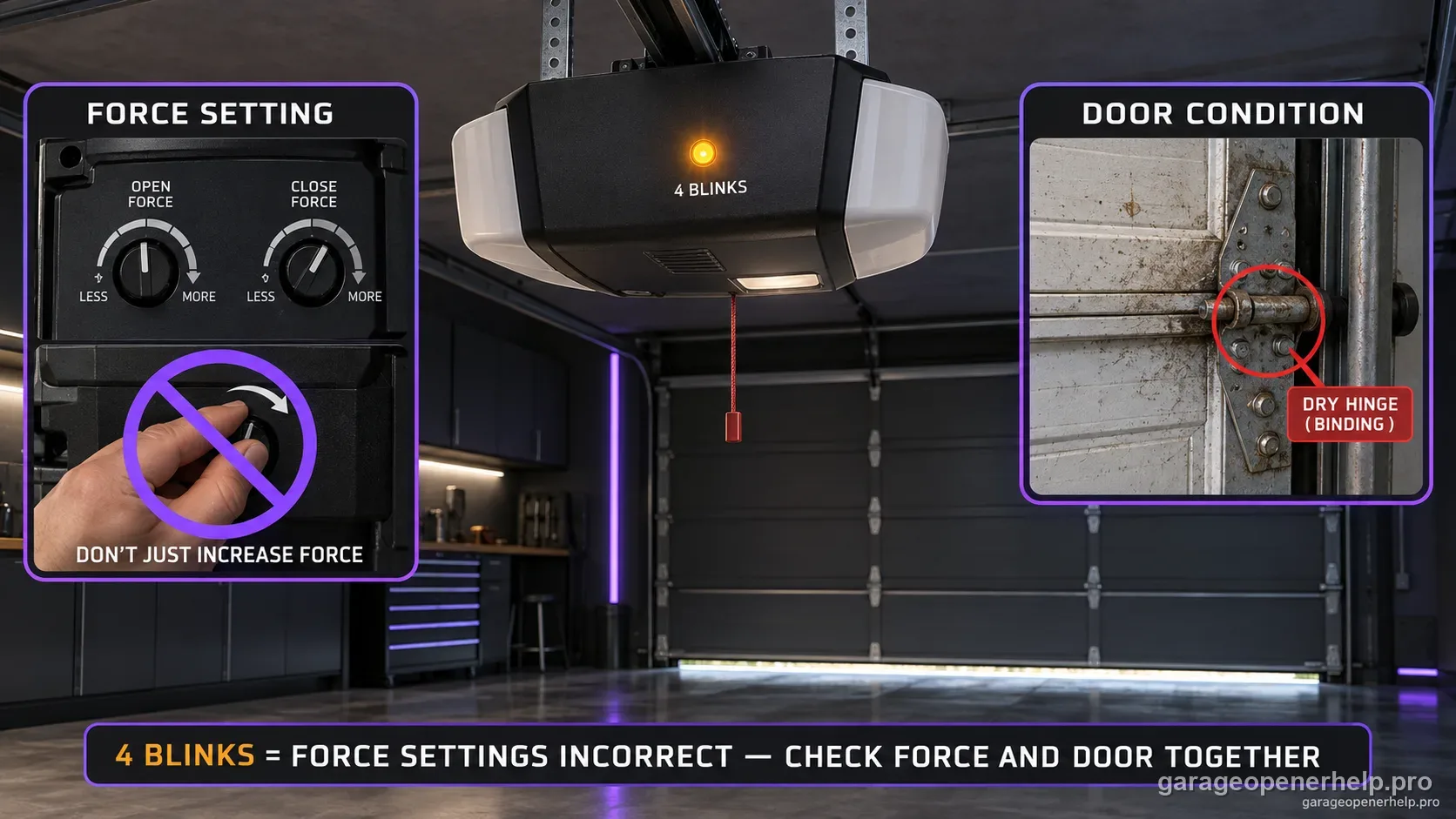

Why four blinks should not lead directly to more force
Genie defines the Excelerator four-blink pattern as incorrect force settings, but the same official chart immediately tells owners to check garage-door condition. That pairing matters: the force control is intended to work with a correctly balanced, freely moving door, not compensate for failing springs, a bent track, seized rollers or another mechanical fault.
If the door condition changes over time, a setting that once worked may no longer describe the real problem. Record whether the failure happens opening, closing, or at one physical point in the travel before touching the adjustment.
Separate opener force from garage-door balance
A force control measures how the opener responds to load; garage-door balance comes from the door's spring system. Those are not interchangeable. If a fully closed, stable door cannot be moved in the manner described by its owner's manual without abnormal weight or binding, stop there and treat the door hardware as the primary safety issue.
Do not adjust springs or cables as part of an opener-code test. Those components store substantial energy and belong to trained door-system service.
Why exact model and setting position belong in the handoff
Excelerator is a family, not one single opener. Photograph the model label and the current force-control position before changing anything. If a service call becomes necessary, that information preserves the pre-adjustment state and helps distinguish a settings issue from a recurring load problem.
After any manufacturer-directed adjustment, one supervised cycle is more useful than repeated testing. If four blinks return, record the direction of travel and the door's manual condition rather than increasing force again.
Why repeated reversals are better evidence than a single failed cycle
A single interruption can be caused by an object, an unusual door movement, or a temporary condition. A four-blink pattern that returns at the same point after the door path is clear is much more useful. Note whether the opener strains, slows, or reverses at the same rail position and whether the behavior is different opening versus closing.
Those observations help separate a repeatable load problem from a one-time obstruction. They also reduce the temptation to keep increasing force until the symptom disappears, which can erase valuable diagnostic evidence and reduce safety margin.
Stop DIY troubleshooting when…
- The door is heavy, crooked, off-track, or has damaged spring/cable hardware
- The opener must be forced through a bind to complete travel
- The four-blink pattern returns after a documented force-setting check
- You would need to work on springs, cables, or internal powered electronics
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Do four Excelerator blinks mean the motor is bad?
No. Genie defines four blinks as incorrect force settings and also tells owners to check the garage door condition.
Can I just turn the force up until the door works?
No. Increasing force can mask a binding or unbalanced door. Verify safe door condition and use only the exact manual's adjustment procedure.
Is this the same as four green blinks on a Genie 2022-family opener?
No. The Excelerator status-light chart and the 1022/2022-family green LED chart are different diagnostic systems.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
