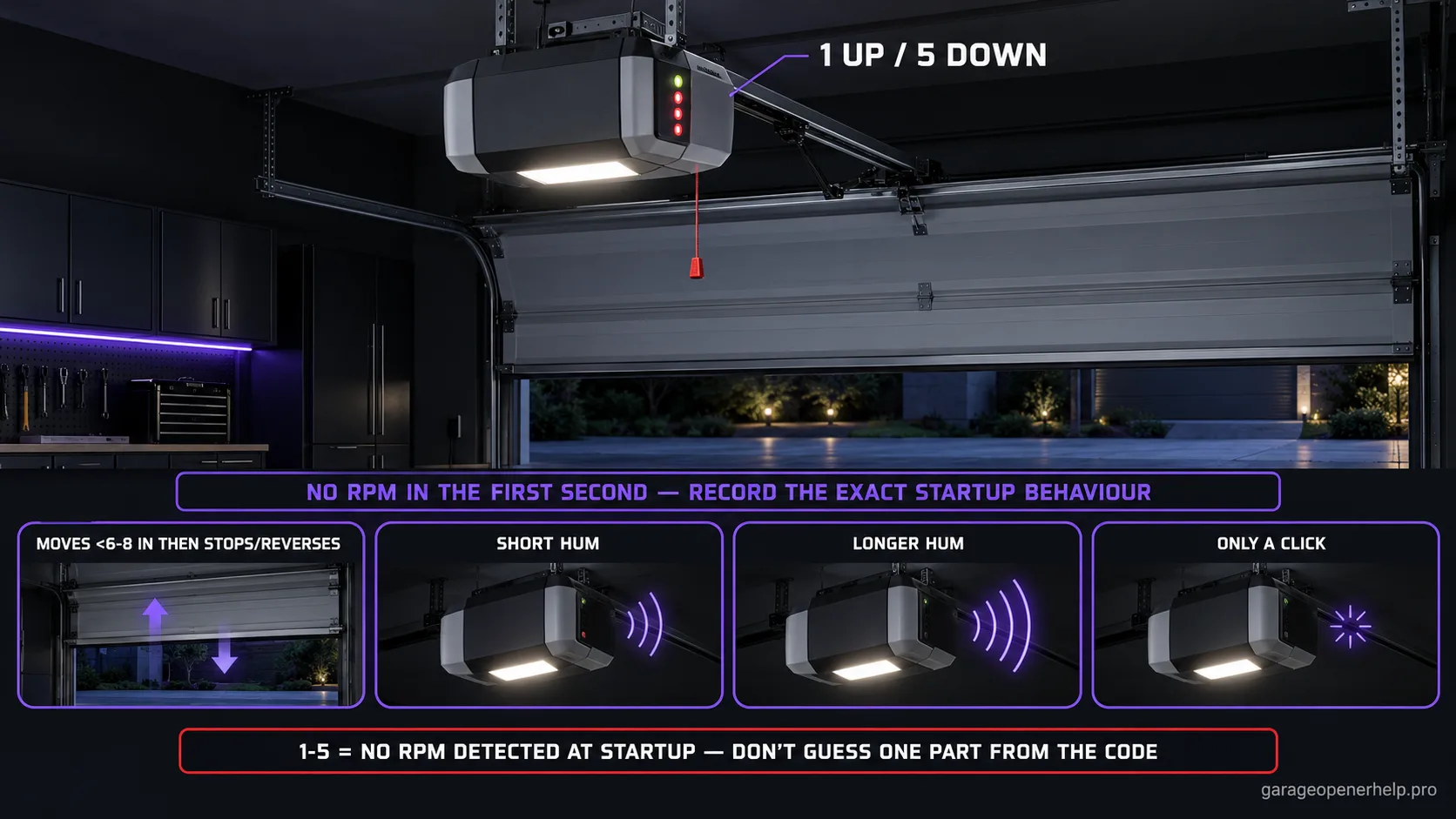

LiftMaster/Chamberlain error code 1-5 means the opener detected no RPM during the first second of attempted movement. Chamberlain Group tells owners to split the diagnosis by the exact startup behavior: the door may move less than about 6–8 inches and stop/reverse, hum briefly, hum longer, or only click. Do not assume one replacement part from the code alone.
Diagnostic snapshot
- Answer
- LiftMaster/Chamberlain 1-5 means no RPM was detected during the first second of attempted movement; it is a symptom family, not proof of one failed module.
- Check first
- Record whether the door moves a few inches, hums briefly, hums longer, or only clicks, then compare safe manual door movement if the door is fully closed and stable.
- Strong clue
- The manufacturer's own table splits 1-5 by those four startup behaviors, so the exact sound/movement pattern is more useful than a generic 'motor error' label.
- Model / generation note
- Internal motor/feedback designs differ by opener family; do not order a travel module or logic board from code 1-5 alone.
Read an UP / DOWN diagnostic code in the correct order
Which arrow flashes first, and how many times?
Security+ 2.0 openers with UP and DOWN adjustment arrows report a code as UP-arrow flashes followed by DOWN-arrow flashes, then pause and repeat. A 4-1 therefore means four UP flashes followed by one DOWN flash; the code does not mean '41 flashes'.
This exact manufacturer signal can feed the following diagnostic families. Keep the original code or LED pattern when troubleshooting.
What you are likely to notice
- The opener shows 1 UP flash followed by 5 DOWN flashes.
- The door moves only a few inches, then stops or reverses.
- The motor may hum while the door does not move.
- The operator may only click with no visible door movement.
Check these in order
1. Record the exact first-second behavior
Do not reduce 1-5 to 'bad travel module.' Chamberlain Group's own diagnostic table branches the code by whether the door moves a few inches, hums for a short time, hums longer, or only clicks. That observation should be written down before a reset or parts change.
2. Check the door as a mechanical load
If the door is fully closed and stable, use only the manufacturer-approved emergency-release procedure to determine whether the door is unusually heavy, binding, crooked, or difficult to move. Do not adjust springs or cables yourself.
3. Check engagement before blaming electronics
If the emergency release was recently used, verify the trolley/release system is re-engaged according to the exact opener manual. On wall-mount/RJO units, use the model-specific release and shaft/door checks instead of trolley instructions.
4. Escalate internal motor/feedback diagnosis when the door is healthy
If the door moves normally by hand but the opener still produces a repeatable hum/click/no-RPM branch, the remaining diagnosis can involve internal drive, motor, RPM/feedback, or logic components. Do not buy a logic board, motor, capacitor, or travel module from the code alone; use the exact model's documented diagnostic branch.
Why exact startup behavior matters more than the generic 'motor error' label
Chamberlain Group's long diagnostic table deliberately breaks 1-5 into four observable responses: a small amount of travel followed by a stop/reversal, a short hum with no movement, a longer hum with no movement, or a click with no movement. That tells you the code is a symptom family rather than a one-part verdict.
Write down which branch you actually have before cycling the opener again. Jumping immediately to 'replace the travel module' or 'replace the logic board' discards the most useful information the opener is giving you: whether the motor tried to turn, how long it tried, and whether the door moved at all.
Separate the garage door load from the operator
A garage-door opener is not designed to compensate for a broken spring, seized roller, bent track, locked door, or badly unbalanced door. If the door is fully closed and stable, the exact opener manual normally describes how to disconnect it for a manual movement check. The purpose is diagnostic only: feel whether the door moves reasonably and evenly, not to adjust the spring system.
If the door is unusually heavy or binds, stop. That finding can explain why the opener cannot establish normal movement and it also creates a safety hazard independent of code 1-5. If the door itself moves freely, the remaining branch becomes more opener-specific and may require internal motor/feedback diagnosis.
What to avoid buying too early
Do not order a motor, capacitor, travel module, logic board, or complete replacement opener based only on the numbers 1-5. Different operator designs implement motor feedback differently, and the manufacturer does not describe this code as one universal failed component.
The best evidence package for service is simple: exact model number, whether the door moves freely by hand, whether the trolley/release is engaged, the first-second motor sound, and the approximate inches of movement before stopping. That is more useful than a cleared code with no notes.
Stop DIY troubleshooting when…
- The door is heavy, off-track, crooked, or a spring/cable is damaged
- The motor housing smells burned or shows electrical damage
- The opener hums/clicks repeatedly without moving and the door itself tests normally
- Internal motor, RPM, capacitor, or logic-board service is required
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
Does LiftMaster 1-5 always mean the travel module is bad?
No. Chamberlain Group defines 1-5 as no RPM detected in the first second of movement and branches diagnosis by the exact motor/door behavior.
What if the door moves only 6 inches and stops?
That matches one of Chamberlain Group's documented 1-5 symptom branches. Check the door's mechanical movement safely before assuming an internal opener part.
Should I keep pressing the button if the opener only hums?
No. Repeatedly energizing a stalled operator can add heat and wear. Record the symptom, stop repeated attempts, and continue with safe mechanical/model-specific diagnosis.
Manufacturer sources used
These links are the factual baseline for the diagnostic claims above. Model-specific manuals can supersede general guidance.
