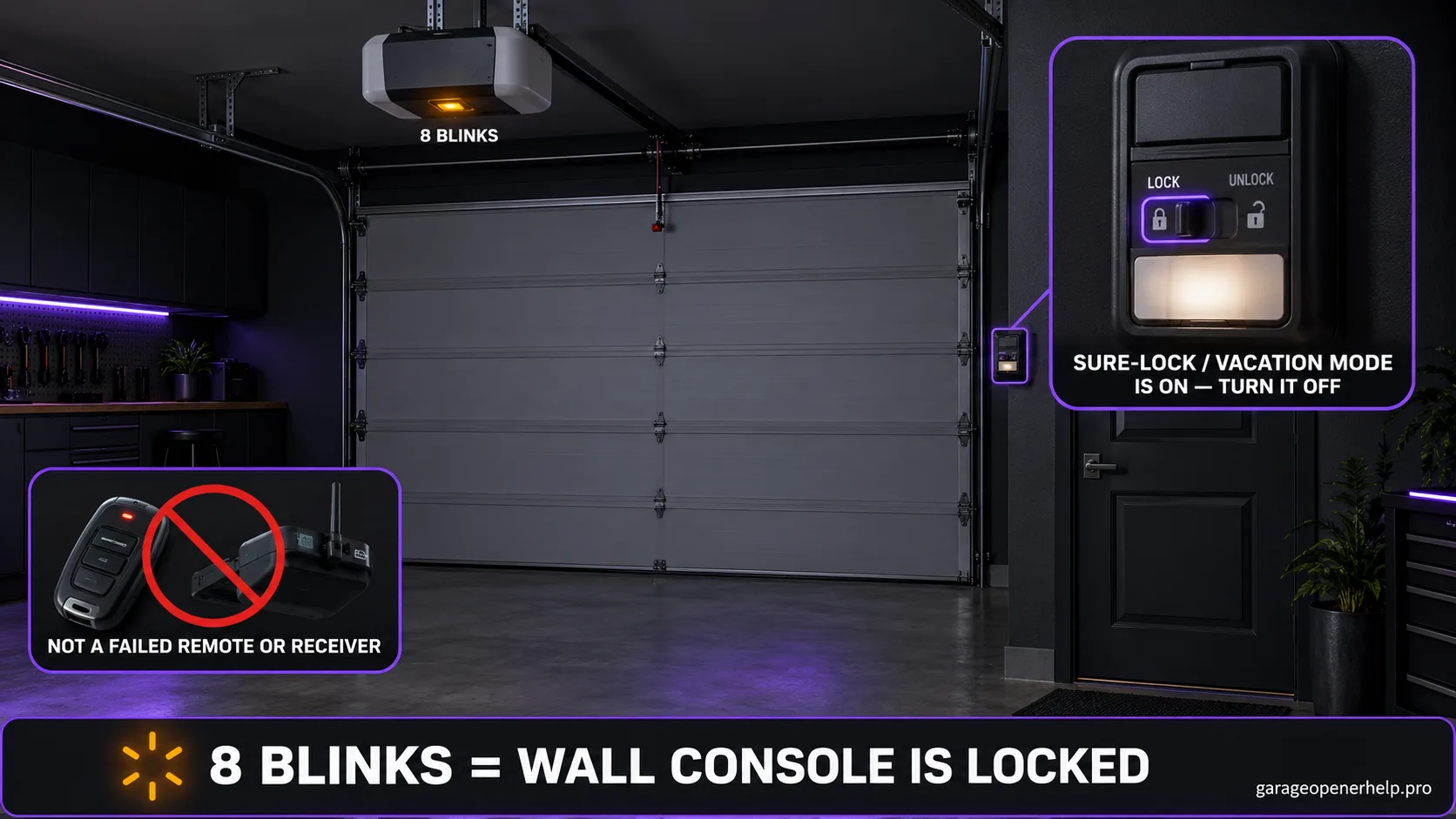

On Genie Excelerator openers, eight repeating status-light blinks mean the wall console is locked. Genie says the vacation locking switch on the wall control is in Lock mode. On the current Series II wall console, Sure-Lock disables normal activation once the door is fully closed; turn Sure-Lock off and verify the console backlight/controls return to their normal state before reprogramming remotes or replacing parts.
Diagnostic snapshot
- Answer
- Eight repeating Excelerator status-light blinks mean the wall console's vacation/Sure-Lock feature is in Lock mode.
- Check first
- Check the wall-console lock switch and unlock it before erasing remote memory or buying a transmitter.
- Strong clue
- Remotes/keypad appearing dead only while the fully closed door is locked is consistent with Sure-Lock behavior, not proof of a receiver failure.
- Model / generation note
- On the Series II wall console, the backlight is off while Sure-Lock is on; wiring problems can also affect console features, so verify the installed console if lock state will not clear.
This exact manufacturer signal can feed the following diagnostic family. Keep the original code or LED pattern when troubleshooting.
What you are likely to notice
- The Excelerator status light blinks eight times, pauses, and repeats
- Remotes or keypad may appear to stop opening the fully closed door
- The wall console's Sure-Lock/vacation switch may be enabled
- The Series II console backlight is off when Sure-Lock is on
Check these in order
1. Check Sure-Lock before erasing remote memory
Genie's Excelerator chart defines eight blinks as a locked wall console. On the Series II console, Sure-Lock is the vacation-lock feature. If the door is fully closed, the opener cannot be activated normally by the wall console or remote while the lock is enabled.
2. Move the lock switch to OFF / unlocked
On the current Series II replacement console, sliding Sure-Lock down turns the feature off and the red backlight should be on when the console is properly wired. Use the exact console instructions because older wall controls may look different.
3. Re-test each control path without reprogramming
After unlocking, test the wired console, one known-compatible remote and the keypad if present. If they immediately work, there was no reason to erase receiver memory or replace the remote. If the eight-blink state remains, verify the wall-console type and wiring.
4. Distinguish lock mode from wiring failure
Genie notes that incorrect Series II wiring can also make the backlight and Sure-Lock/light features malfunction. If the switch is physically unlocked but the feature state looks wrong, inspect the documented low-voltage terminal orientation rather than assuming the receiver failed.
Why a vacation lock can look like a dead remote system
Sure-Lock is designed to disable normal activation when the garage door is fully closed. To a homeowner who did not intentionally enable it, the symptom can look exactly like several remotes or the keypad suddenly lost programming. The eight-blink code prevents that unnecessary troubleshooting detour.
Check the wall console first. If unlocking immediately restores the controls, do not erase receiver memory—the radio devices were not the cause.
The backlight is useful, but not absolute proof
Genie's current Series II console instructions say the backlight is red when the console is properly wired and Sure-Lock is OFF, and off when Sure-Lock is ON. However, the same instructions warn that reversed wiring can also make lock and light features malfunction. Use the switch position, backlight and actual opener behavior together.
If the opener has a different wall-console generation, follow that exact console's documentation rather than assuming the Series II slider layout.
Lock behavior is a control-state problem, not a reason to replace parts
Eight blinks identify a state that can be intentionally activated. That makes remote batteries, receiver boards and Safe-T-Beam parts poor first purchases. Rule those purchases out until the lock state has been checked.
If the switch is unlocked but the code remains, document console type, wiring orientation and whether the backlight responds. That evidence separates a stuck/incorrect console state from a broader wall-control circuit problem.
A lock-state test can prevent unnecessary remote purchases
When multiple wireless devices all appear to stop opening the door at the same time, homeowners often assume the receiver failed or every remote lost programming. Eight Excelerator blinks give a simpler manufacturer-documented explanation to test first: the wall console is locked.
After Sure-Lock is turned off, test one known remote before changing batteries in every device or buying a replacement transmitter. If that one remote works again, the shared failure was control state, not multiple simultaneous remote faults. That observation rules down expensive receiver or multi-remote failure branches before any parts are purchased. If only one remote remains dead after unlock while others work, that becomes a separate transmitter-specific problem rather than evidence that the eight-blink diagnosis was wrong.
Stop DIY troubleshooting when…
- The lock state will not clear on a verified compatible wall console
- Wall-console wiring is damaged or the terminal arrangement is uncertain
- The opener has another diagnostic signal after Sure-Lock is turned off
- Internal control-board diagnosis would be required
Garage door springs, cables and a falling/unbalanced door can store or release dangerous force. Those are door-system problems, not just opener settings.
Common questions
What do eight blinks mean on a Genie Excelerator?
Genie says the wall console is locked and the vacation locking switch is in Lock mode.
Does Sure-Lock erase my remotes?
No. It changes whether the opener can be activated; turning it off should be checked before reprogramming wireless devices.
Why is my Series II wall-console backlight off?
Sure-Lock turns it off, but incorrect wiring can also affect the backlight and lock/light features.
